Types of floor transition strip

There are many reasons for the floor bulge, and factors such as thermal expansion and contraction cause him to warp.In the splicing of the floor and the floor or the splicing of the floor tiles, remember to install the transition strip. Beautiful and convenient.

It has many shapes, such as right angle buckles, T-shaped buckles, single-sided buckles, beveled edges and U-shaped buckles. The transition strip is used to bridge the intersection of two same materials or different materials. The materials is different, it is necessary to leave some gaps, and the floor transition strip can handle the gap.

When we laying the floor,It is necessary to leave the seam around the room. This is to make the floor have space to expand and contract. Use the transition strip to deal with the gap between the floors or tiles. If the height difference between the two is less than 5mm, consider using transition strip with a slope. This does not affect In the future life, you can also decorate the beauty of the splicing place!

1 .- Arc horizontal transition strip -

▼

For room horizontal separation

The top is detachable, the sturdy aluminum base is easy to install - it can also be used in public places, the base will not be deformed by the solid support at the top, the top + base is fixed like a screw joint, and the UTOP floor can be covered according to the ground . Automatic height and tilt adjustment for all floor finish systems.

Circular horizontal transition strip

Width: 33 mm / 40 mm

Length: 0.9 m / 2.7 mm

Installation method: nylon screw

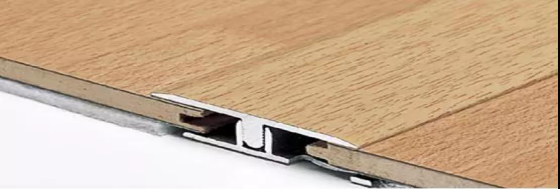

2 .- T-type horizontal transition strip-

▼

For room level separation or home decoration

A solid T-shaped profile for expansion joints and excessive areas. Moderate mechanical strength. Strong chemical resistance. Aluminum oxidation (copper green) treatment is carried out in air.

Bullet type horizontal transition strip

Width: 14 mm / 25 mm

Length: 2.5 meters

Installation method: gluing

 3 .- Arc high and low universal buckle -

▼

Used for high and low transition separation of ground areas

The top is a detachable, fixed aluminum base that is professionally mounted and is also suitable for use in public areas. The base does not deform due to the top fixed support. The top + base is fixed like a screw combination. The UTOP Floor automatically adjusts the height and tilt according to the floor covering. A system that can be used for all floor finishes.

Width: 35 mm

Length: 0.9 / 2.7 mm

Installation method: aluminum base, nylon buckle

4 .- Horizontal transition strip -

▼

For room horizontal separation

The top is detachable, the fixed aluminum base is easy to install - it can also be used in public places, and the base will not be deformed by the top fixed support. The top + base is fixed like a screw combination. The UTOP Floor automatically adjusts the height and tilt according to the floor covering. The system can be used on all floor finishes.

Width: 40 mm

Length: 0.9 mm / 2.7 mm

Installation method: aluminum base, nylon buckle
